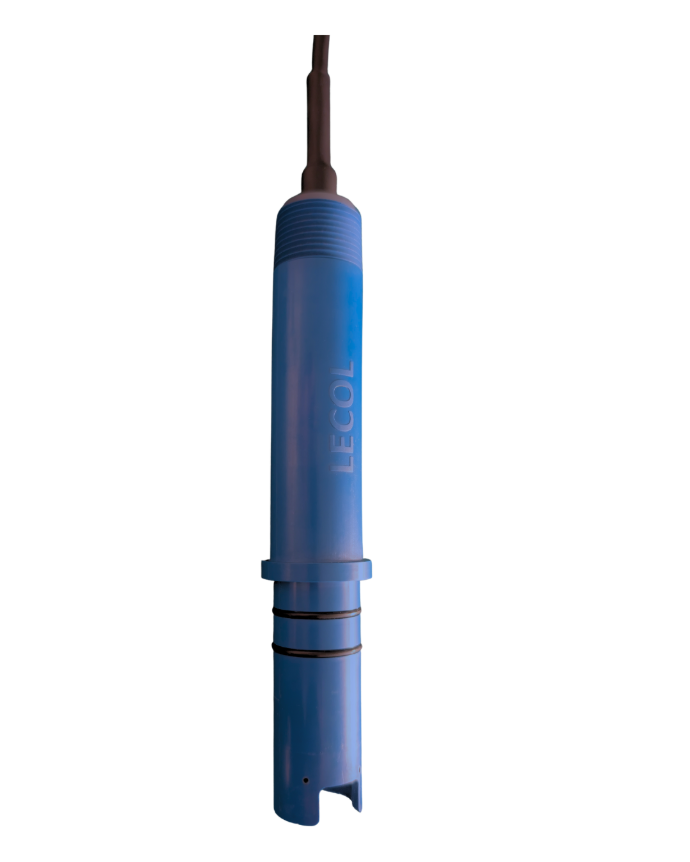

B67 Qucik-Nut pH/ORP Sensor

LECOL’s B67 Quick-Nut pH/ORP sensor features the patented ION BARRIER reference system for reliable measurement in harsh process conditions. Its alternative connection design simplifies fitting and helps prevent cable twist during installation, improving handling on site and supporting faster, more consistent maintenance routines.

Application:
•Neutralization process
•Waste emission
•Flue gas desulfurization
•Sewage effluent
•Waste water treatment

Features

LECOL ION BARRIER series pH sesnor
Enhance solid state reference electrode - longer life time
Large porous Teflon liquid junction maintain stable reference
Offer porous Teflon and Wood material for large liquid junction
Quick Nut simplifies installation and prevents cable twist
Robust PPS body sutiable for general purpose and harsh environment application
Integral temperature compensator
PT100 / PT1000
Vairety of glass electrode for different application

Specifications

B65 pH/ORP sensor
Measuring range	PH: 0 ~ 14 pH ORP: - 2000 ~ 2000 mV
Body material	Polyphenylene Sulfide (PPS)
Liquid junction	Wood notched/ Teflon notched
Temperature compensator	PT100/ PT1000
Operating rating	10 kg/cm² at 70 °C 2.8 kg/cm² at 130 °C

Download

B67 Qucik-Nut pH/ORP

sensor datasheet(ENG)
