Features
- LECOL combination pH electrode series
- Available in insertion or retraction type
-
Solid-state reference electrode for extended lifespan
-
Porous Teflon liquid junction maintains a stable reference
- Integral temperature compensator:
PT100 / PT1000 - Variety of glass electrodes for different applications
- Inner sensor body PVDF with a 316LSS outer sleeve, suitable for most harsh environment
(optional sleeve material: Hastelloy C)

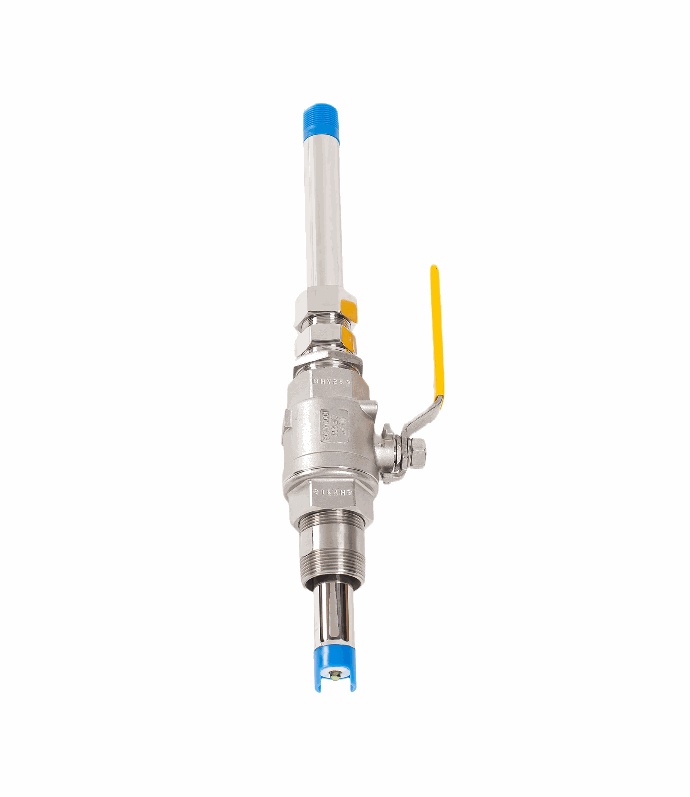

- Hot tap ball valve assmebly for safe insertion and remove
- Sleeve length available in 16" (standrd) / 24" / 32" /36"
- LECOL combination pH electrode series
- Available in insertion or retraction type
- Solid-state reference electrode for extended lifespan
- Porous Teflon liquid junction maintains a stable reference
- Integral temperature compensator:
PT100 / PT1000 - Variety of glass electrodes for different applications
- Inner sensor body PVDF with a 316LSS outer sleeve, suitable for most harsh environment
(optional sleeve material: Hastelloy C) - Hot tap ball valve assmebly for safe insertion and remove
- Sleeve length available in 16" (standrd) / 24" / 32" /36"
Specifications

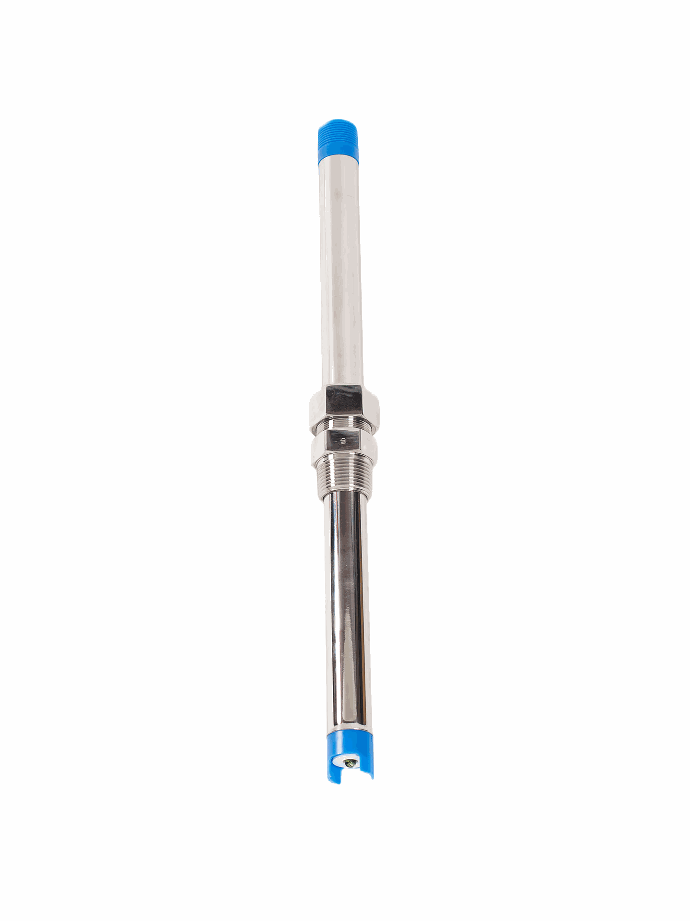

| B75 pH/ORP sensor | |
| Measuring range |
PH: 0 ~ 14 pH ORP: - 2000 ~ 2000 mV |
| Inner body material | PVDF |
| Outer sleeve material | 316LSS Hastelloy C (optional) |
| Compression fitting material |
316SS Titanium (optional) Hastelloy C (optional) |
| O-ring material | Viton, FFKM(optional) |
| Outer sleeve length | 16"(standard) / 24" / 32" /36" / Customized length |
| Reference type | Solid state |
| Liquid junction | Wood notched / Teflon notched |
| Temperature compensator |
PT100 / PT1000 |
| Operating rating |
10 kg/cm² at 70 °C |
