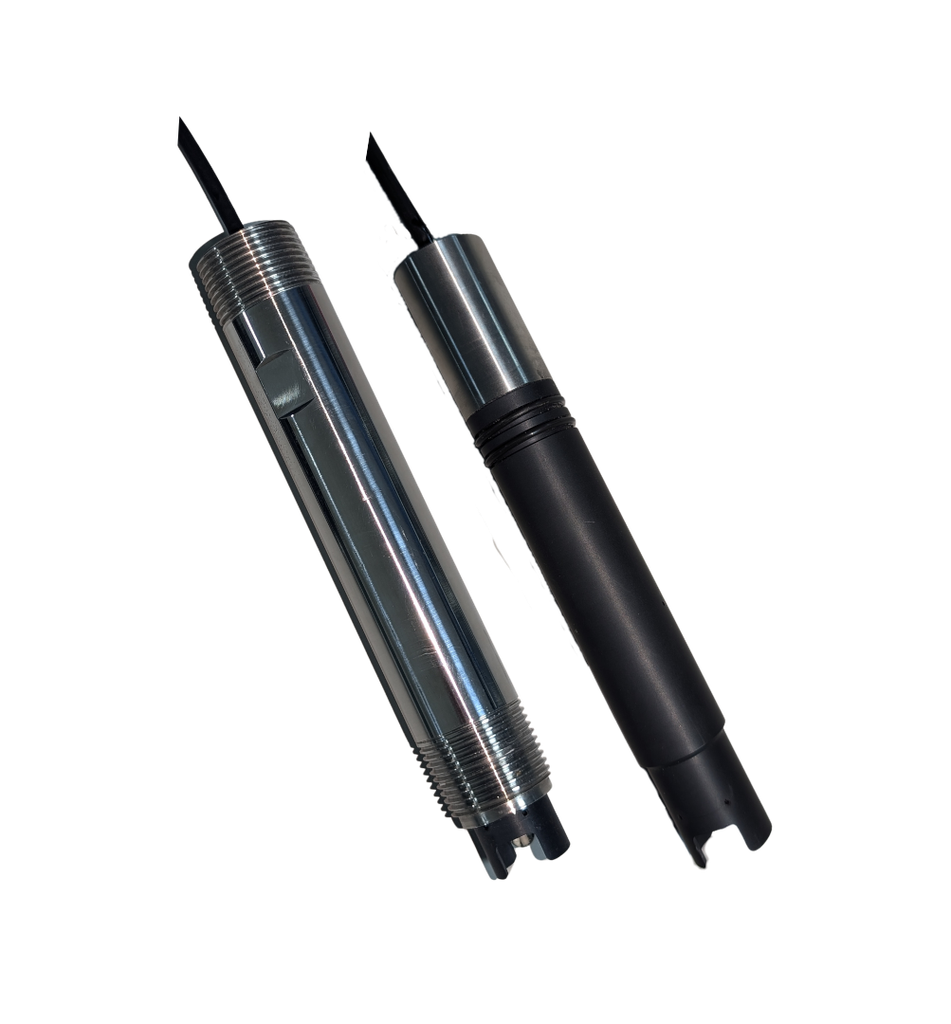

B85 high pressure pH sensor

https://www.lecoltw.com/web/image/product.template/42/image_1920?unique=75a2d36

LECOL B85 high-pressure pH sensor is engineered for demanding pressurised sampling and process duties, delivering stable measurements where standard sensors struggle. Built with ION BARRIER reference technology, it offers a longer service life, improved stability, and reduced maintenance in harsh, high-pressure applications.

Application:
•High pressure pipe line
•High pressure application

    This combination does not exist.

    FeaturesSpecificationsDownload

    Features

    • LECOL ION BARRIER series pH sesnor
    • Enhance solid state reference electrode - longer life time
      • Large porous Teflon liquid junction maintain stable reference
      • Offer porous Teflon and Wood material for large liquid junction
    • Rugged stainless steel housing and PPS body for high pressure demande
    • Dual O-ring sealing for improved pressure integrity
    • Integral temperature compensator
      PT100 / PT1000
    • Vairety of glass electrode for different application

    Specifications

    B85 high pressure pH sensor
    Measuring range
    		 PH:   0 ~ 14 pH
    ORP: - 2000 ~ 2000 mV
    Body material
    		 Polyphenylene Sulfide (PPS)
    Housing material
    		316SS
    Housing connection
    		1" NPT
    Liquid junction Wood notched/ Teflon notched
    Temperature compensator PT100/ PT1000
    Operating rating20 bar Max
    135 °C

    Download





    B85 high pressure pH sensor datasheet(ENG)
