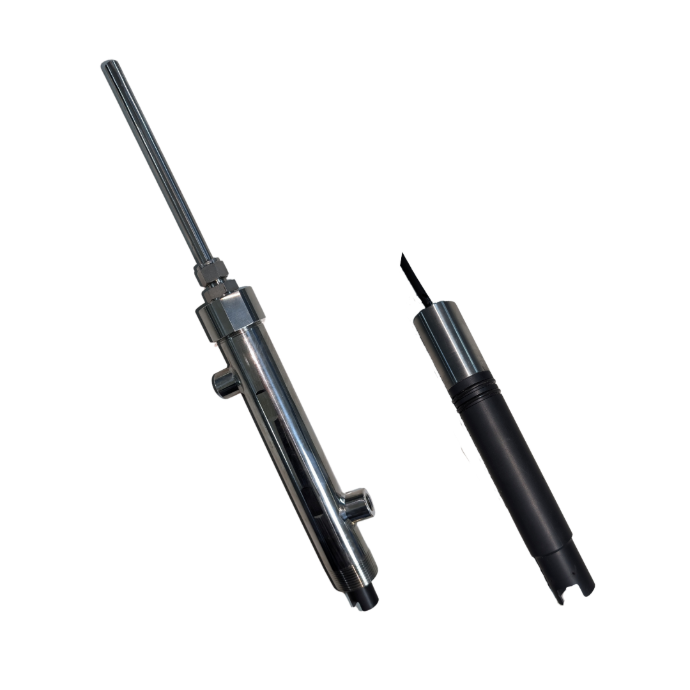

B86 Hot-tap High Pressure pH/ORP Sensor

The LECOL B86 hot-tap high-pressure pH/ORP sensor is designed for pressurised service, allowing installation or removal without interrupting the process. Paired with an isolation ball valve, it allows process pressure to be isolated, improving safety during maintenance. Built with ION BARRIER reference technology, it delivers stable performance, a longer service life, and reduced maintenance in harsh applications.

Application:
•High Pressure tank side mounting
•Outlet of Pump
•High Pressure Application

Features

LECOL ION BARRIER series pH sesnor
Enhance solid state reference electrode - longer life time
Large porous Teflon liquid junction maintain stable reference
Offer porous Teflon and Wood material for large liquid junction
Hot-tap design enables insertion/retraction under pressure without interrupting the process
Isolation ball valve to isolate process pressure for safer maintenance
Integral temperature compensator
PT100 / PT1000
Vairety of glass electrode for different application

Specifications

B86 Hot-tap High Pressure pH/ORP Sensor
Measuring range	PH: 0 ~ 14 pH ORP: - 2000 ~ 2000 mV
Body material	Polyphenylene Sulfide (PPS)
Housing material	SS316
Liquid junction	Wood notched/ Teflon notched
Temperature compensator	PT100/ PT1000
Operating rating	20 bar MAX 135 °C

Download

B86 Hot-tap High Pressure pH/ORP Sensor datasheet(ENG)
